Name: 12 Circuit Negative Bus Blade Fuse Block
Brand: The Shopsite
Price: 25.99 NZD
Availability: OutOfStock

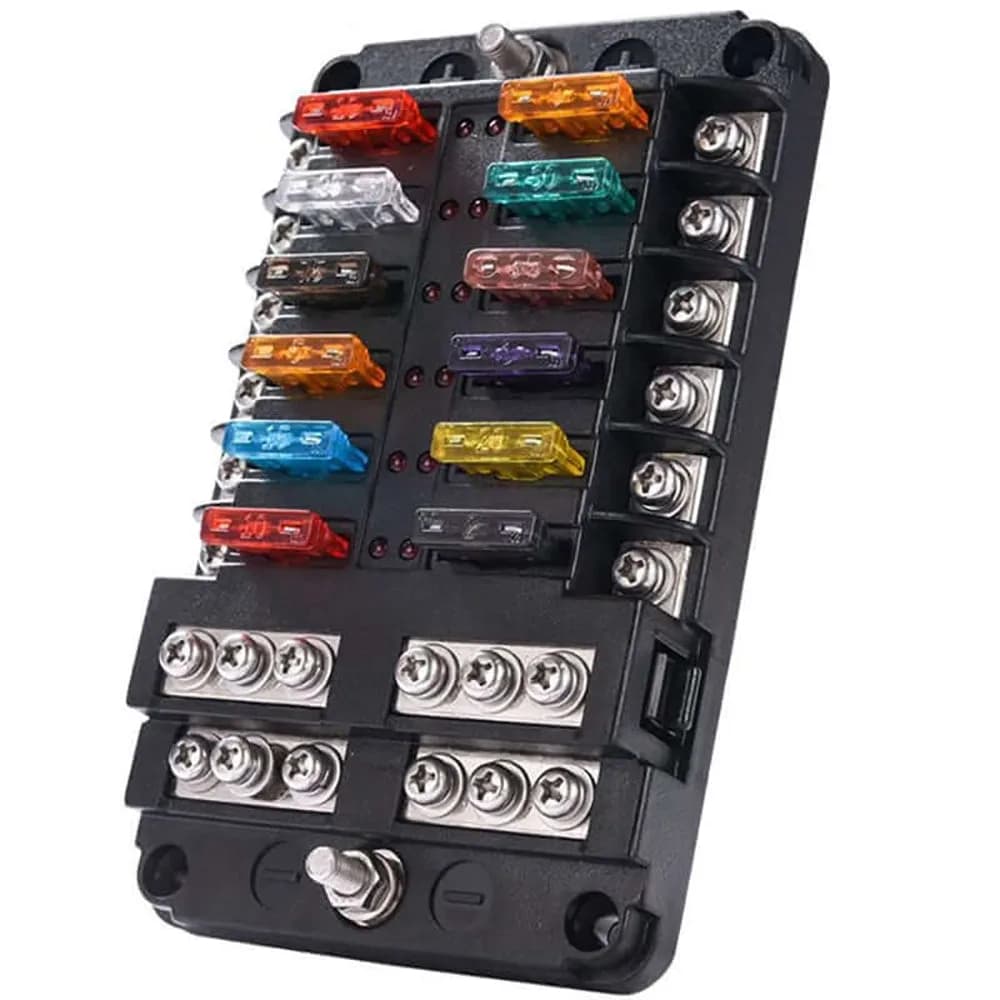

This 12-Circuit Blade Fuse Block is engineered for reliable circuit protection across automotive, marine, and heavy vehicle applications. Each circuit has both positive and negative terminals, a built-in LED indicator that flashes red when a fuse blows, and a transparent push-latch cover to keep fuses safe from splash and dust. Four pre-moulded mounting holes make installation straightforward, while marine-grade stainless steel screws and nickel-plated copper terminals ensure the block holds up in demanding environments over the long term.

Specifications

Voltage (Max)	32V DC
Input Terminal Rating	100A max.
Output Terminal Rating	30A max. per circuit
Number of Circuits	12
Input Wire Size	#4 to 6 AWG
Output Wire Size	#12 to 16 AWG
Temperature Rating	-20 to 85 degrees Celsius
Terminal Material	Nickel-plated copper
Screw Material	Marine-grade stainless steel
Compatible Fuse Type	ATC/ATO mid-size blade fuses

What's Included

1 x	12-Circuit Negative Bus Blade Fuse Block
1 x	Label Stickers Set

Safety Notes

Fuses are not included and must be purchased separately. Always ensure the correct fuse rating is used for each circuit. Do not exceed the maximum voltage or amperage ratings stated in the specifications.
