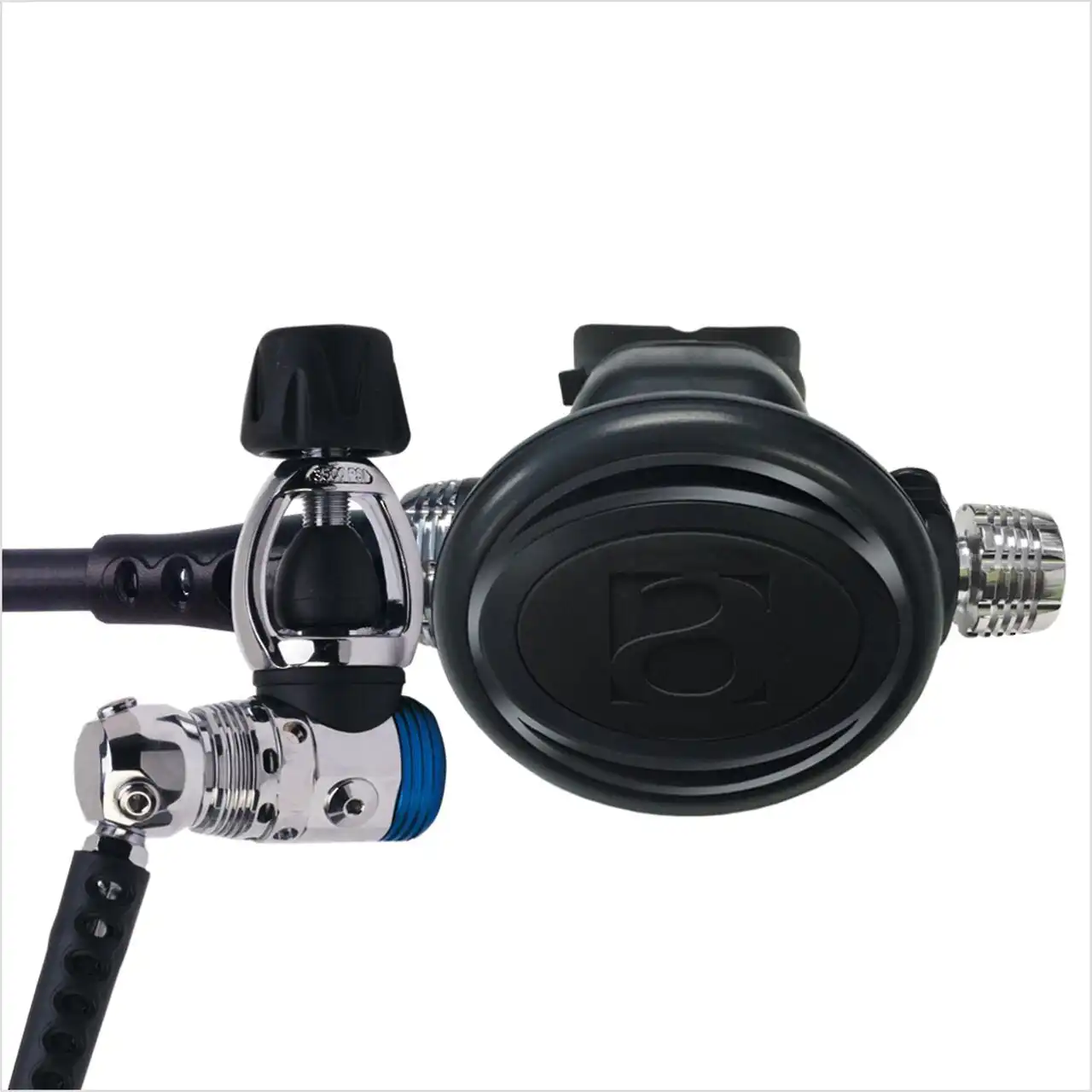

Diving Regulator – Atlantis Quest R10

Balanced Piston. Best value regulator on the market!

This is an extremely robust, reliable and affordable regulator. We are the manufacturers and will always be able to efficiently service every component.

1st Stage:

• Balanced “flow-through” piston 135-145 PSI for maximum ease of breathing.
• Maximum working pressure 3500 PSI (232 bar)
• Low pressure port swivel assembly for versatile positioning.
• Four 3/8-24 UNF-2B intermediate pressure ports.
• two 7/16-20 UNF-2B high pressure ports.
• Chromium plated brass body.
• Marine grade 303 stainless steel parts. Internal working parts are also passivated treated for extra protection and durability.
• Available in Yoke or DIN.

2nd Stage:

• Adjustable 2nd stage.
• Downstream demand valve.
• Marine grade 303 stainless steel parts. Internal working parts are also passivated treated for extra protection and durability.
• 150 PSI maximum intermediate pressure.
• 1.2 to 1.4 CIW (column inches of water) inhalation effort.
• 1.1 CIW (column inches of water) exhalation effort.
• 30+SCGM (air supply:3,000 PSI).

Factory ready for Nitrox under 40%.
